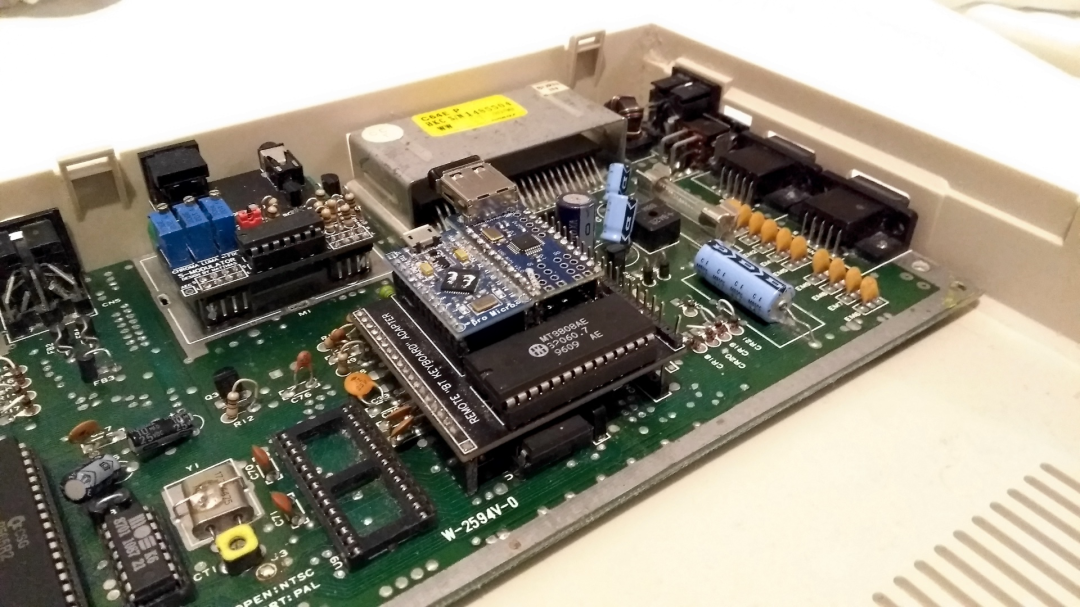

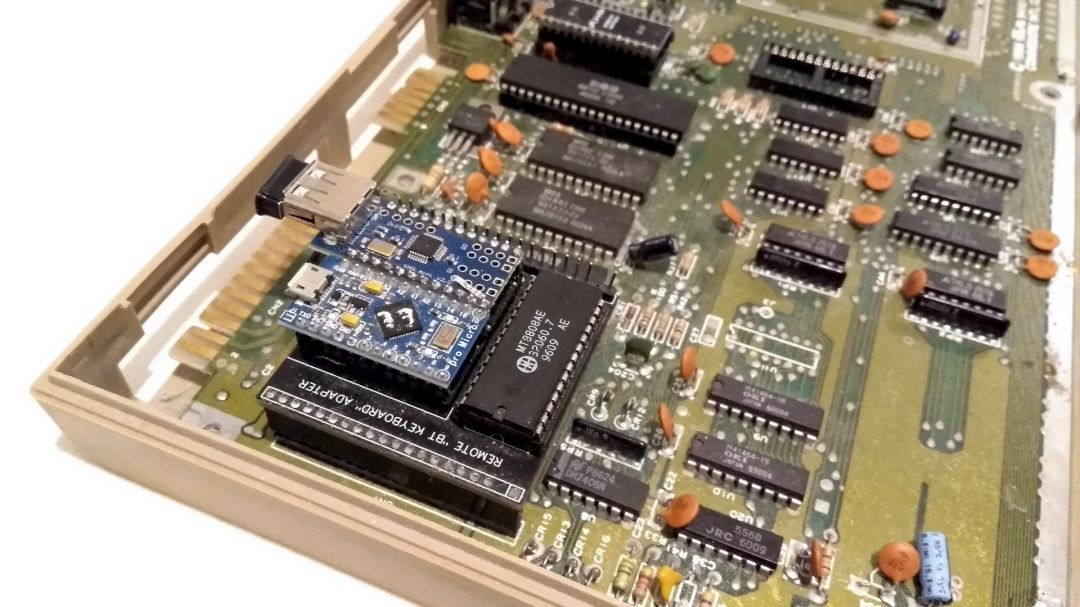

With this board it is possible to connect a normal Bluetooth Keyboard or a normal USB Keyboard to the C64. The adapter board is plugged into the C64 keyboard connector and powered from there. On the opposite side the normal C64 keyboard can be connected at the same time. A CSR 2.x +EDR Bluetooth USB dongle is required (APLIC USB Bluetooth Nano Stick 4.0, CSR 8510 Chipset).



The following boards are supplied (only the board, without components):

Data:

-> Informations





Components Ordering help (no claim to completeness, may be out of date):

-> Reichelt CSV

-> Components from other sources



Files:

-> Firmware



Key assignment:

CLR/HOME => PRT SCREEN / F12

RUN/STOP => ESC

RESTORE => BACKSPACE / INSERT

CTRL => TAB

COMMODORE (C=) => STRG

ARROW LEFT => / ~

POUND (£) => F6

EQAL (=) => F9 / SHIFT 0

ARROW UP => F8 / #
