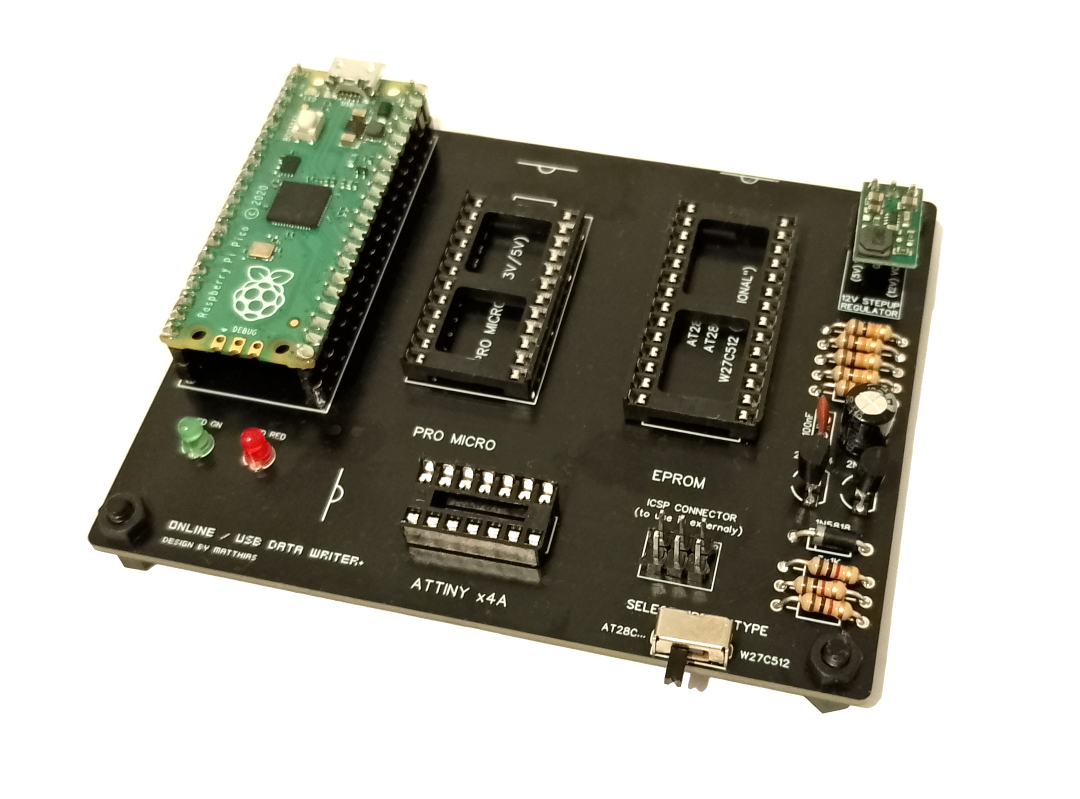

This inexpensive and thanks to its online drag & drop interface very easy to use USB DATA/EPROM Writer, allows to write very simple all EPROM types (AT28C64, AT28C256, W27C512), ATTiny (24/44/84, and with the ICSP Connector: 25/45/85) and Pro Micro, used on UNI64 computers (incl. fuses).
Via the external 6 pin ICSP connector on the board, microcontrollers can also be written on other boards that offer an ICSP connector.

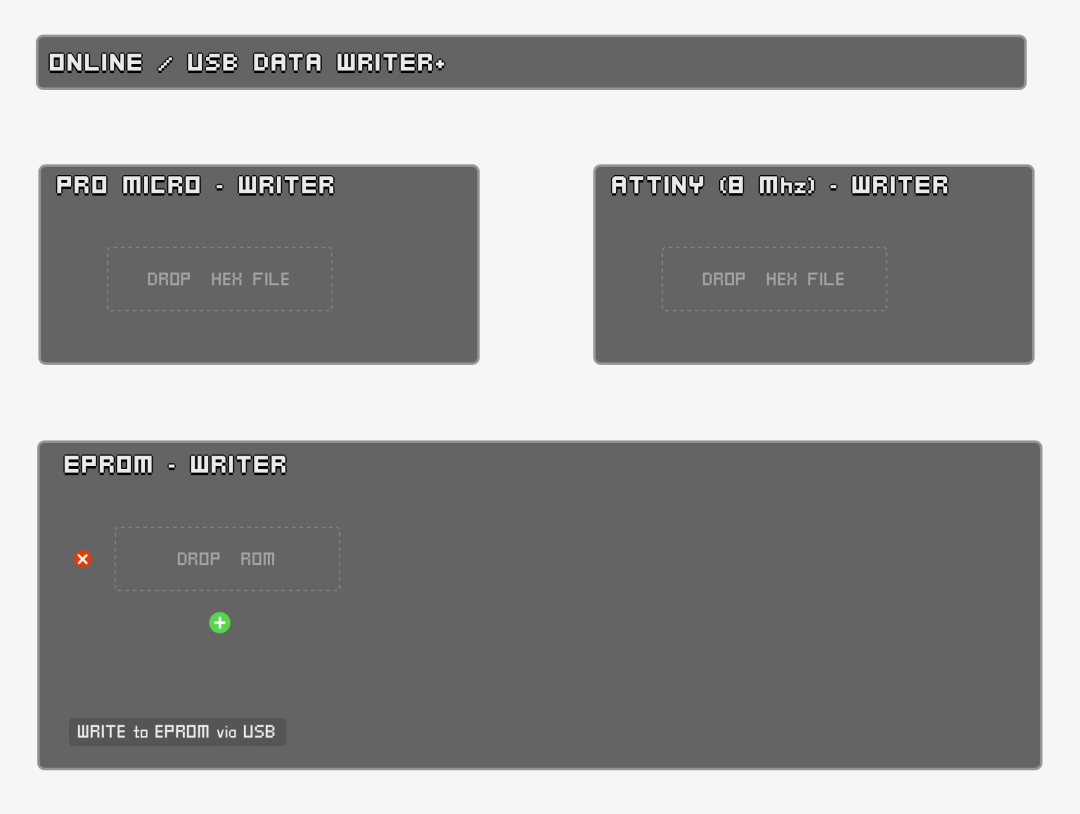

(if you prefer to use the online interface and the USB Eprom Writer offline, you can save the website with the Chrome browser and access it locally)
With this new USB DATA Writer, it s now possible to create and utilize your own Kernel/Basic/Char ROM without any electronics knowledge in no time. Additionally, it allows you to create ready-to-use ATTiny84 and Pro Micro microcontrollers instantly through simple Drag & Drop (Fuses are automatically set).
Usage:
1. connect USB DATA Writer to the computer via USB.
2. open the Chrome browser on the computer with the ERPOM Writer web page
3. drag and drop ROM files to the web page interface
4. press "Write to Eprom" button

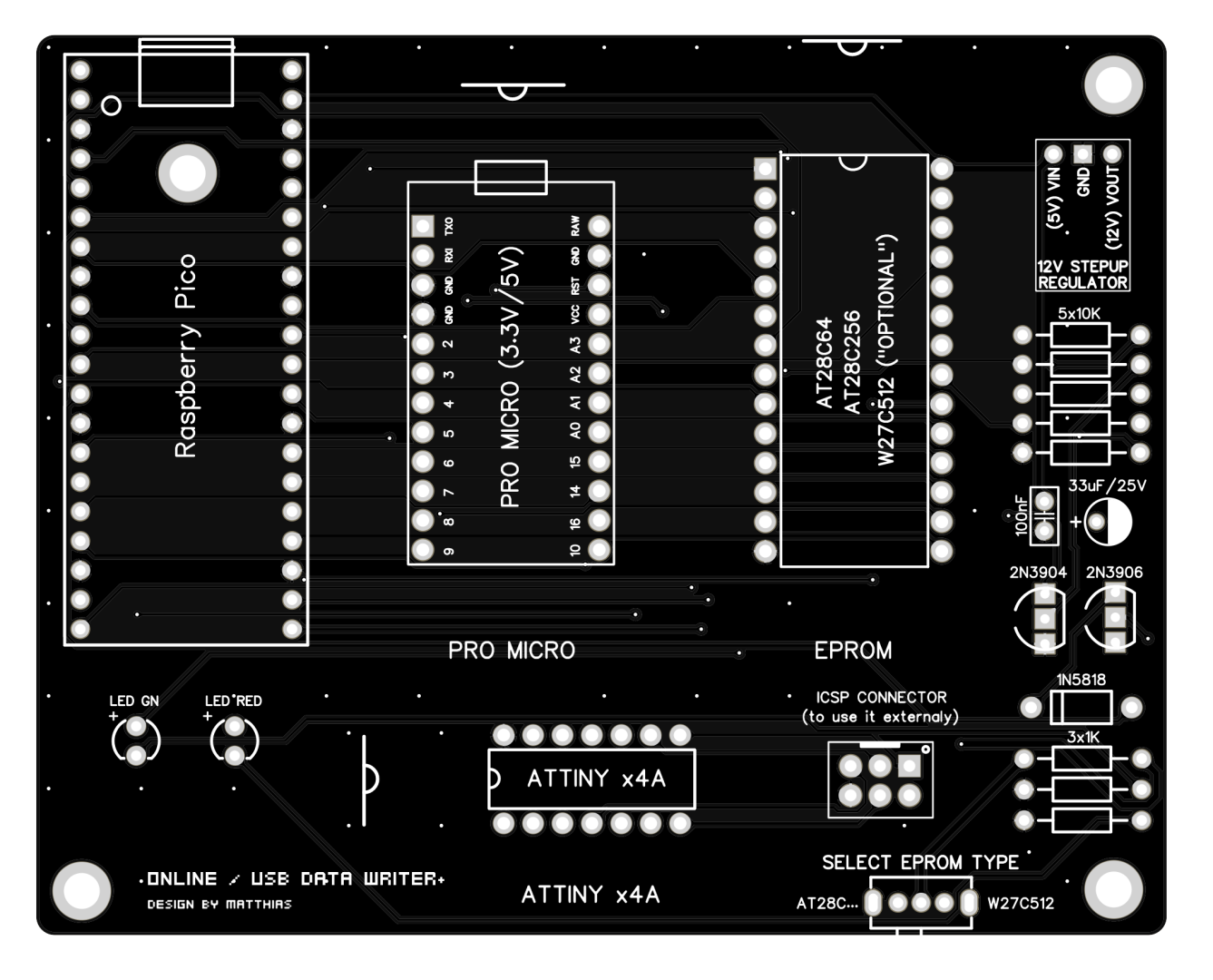

The following PCB boards will be delivered (only the unpopulated PCBs, without components):
- ONLINE USB DATA/EPROM Writer
In Stock
