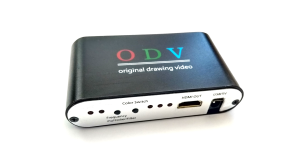

The uLightBox64 is a slim 100x100mm C/64 with 34 RGB LEDs for automatic SID Light-Effects, with the possibility to connect a Bluetooth or USB keyboard directly, as well as with optional HDMI output (ODV video converter to be ordered separately!)
At the top is the expansion port (vertical), so that a C64 module can be plugged in vertically. The individual RGB LEDs can be controlled via different modes. There is a button on top of the board to switch through the different modes (SID-Auto, Kitt, Demo, Manual). The LEDs can also be controlled via Basic/Assembler commands.
On the lower Connections board a Raspberry Pi Zero can be plugged directly (optional), so that then a Pi1541 drive is "OnBoard".
The Userport and the TAPE port are also available.
Included are 10 boards:
- Power (12V, S-VIDEO, placeholder for optional HDMI Out)
- Connections (Userport, Tapeport, 2x Gameports, Floppy/Serial Port)
- Interface
- Remote Keyboard
- CPU
- RAM
- ROMs
- Video
- Sound (3 SID sockets)
- Top
The uLightBox64 is delivered ready soldered and already equipped with standard ICs (8701 and 64K RAM are already included), but without the Commodore specific ICs (CPU, VIC-II, CIA, PLA, SID, ROMs). The board only has to be equipped with the usual Commodore specific ICs. A Raspberry PICO for controlling the RGB LEDs is included.
You need a 12V/2A power supply (round plug with 2,1mm inner diameter), which is not included.
Note: All necessary old original Commdore ICs have already been developed several times as replica ICs (PLA, SID, CIA, VIC-II, CPU) and are partly already available on the market. Therefore, original Commodore ICs may no longer be absolutely necessary.
-> Firmware
-> Firmware (Extra)
Files:
-> RGB LED Config Tool
-> Multiple SIDs Test Tool
-> S-Video Color Test Tool
Manufacturer and Safety Information
Manufacturer InformationDipl. Inf.(FH) Matthias Lorenz
c/o Online-Impressum.de
Europaring 90
53757 Sankt Augustin
www.uni64.com
E-Mail: webshop@uni64.com
WEEE-Number: DE94821459
Responsible Person for the EU
See manufacturer information
Product type: Electronic assembly (finished module).
Product IdentificationProduct: uLightBox64 v4 (READY+)
Art.-No.: 7468
This product must not be disposed of with household waste. Please hand it in at a municipal collection point.
Safety Instructions:- This product is a technical component and not suitable for children.
- Approved only for operation with safety extra-low voltage (max. 12V DC).
- The component does not have its own housing. To prevent short circuits and signal interference, operation on conductive surfaces is prohibited and suitable shielding is required.
- Installation and commissioning only by qualified personnel.
Orderable (delivery in 5 weeks)
