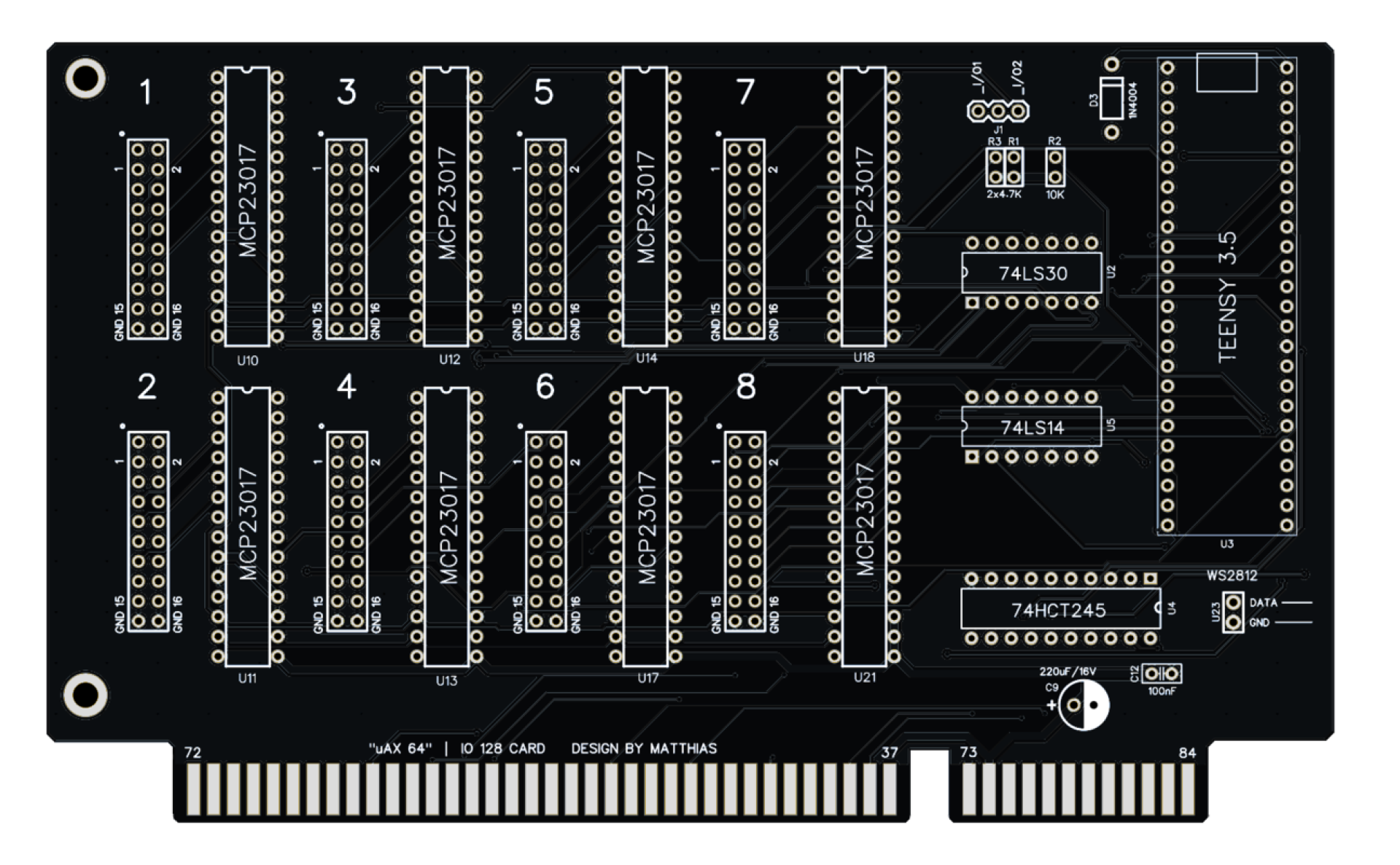

With this I/O card it is possible to access 128 I/O ports. Furthermore this card offers an additional WS2812 RGB LED controller to control W2812 RGB LED strips placed in the ATX case.
The following PCB boards are supplied (only the unassembled boards, without components):
- "uAX64 I/O Card"
Data:
- BOM
Components Ordering help (no claim to completeness, may be out of date):
- Reichelt CSV
- Components from other sources
Firmware Download:
-> Link
(to transfer the firmware to the Teensy via USB, the Teensy Loader can be used: File -> "Open HEX File")
Manufacturer and Safety Information
Manufacturer InformationDipl. Inf.(FH) Matthias Lorenz
c/o Online-Impressum.de
Europaring 90
53757 Sankt Augustin
www.uni64.com
E-Mail: webshop@uni64.com
WEEE-Number: DE94821459
Responsible Person for the EU
See manufacturer information
Product type: Unpopulated printed circuit board (PCB) for further processing.
Product IdentificationProduct: uAX64 IO 128 CARD
Art.-No.: 41
This product must not be disposed of with household waste. Please hand it in at a municipal collection point.
Safety Instructions:- This product is not suitable for children.
- PCBs may have sharp edges or corners due to manufacturing. Handle with care.
- Designed exclusively for use in low voltage electronic circuits (max. 12V DC). Further processing (assembly/soldering) must only be carried out by qualified personnel.
Product currently unavailable
