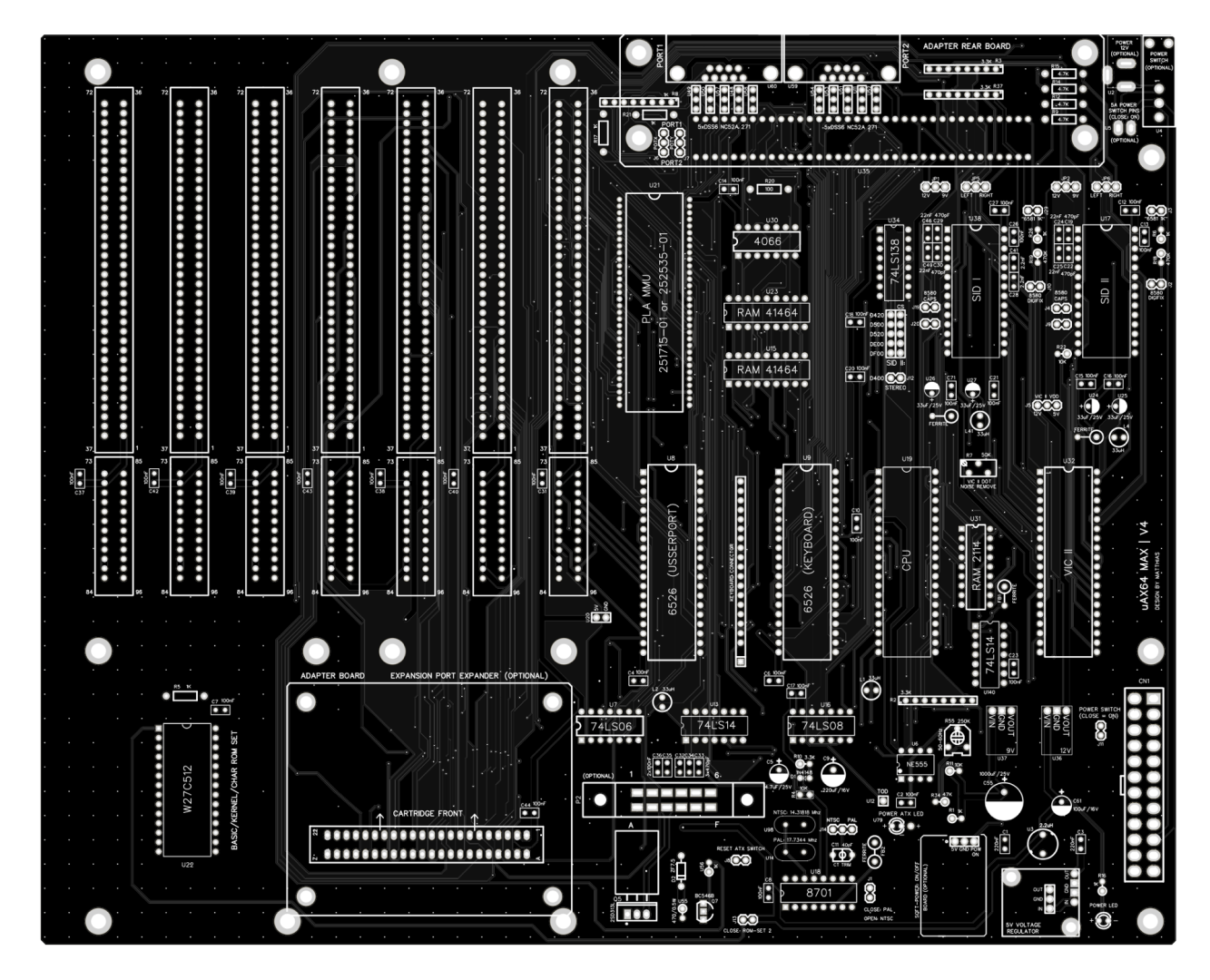

The uAX64 MAX board is 304mm x 245mm and fits into an ATX case. The special feature are the 7 card slots, which are an elegant way to upgrade the C/64 fast and easy, as well as to create new cards for it yourself. It also fits the additional cards from the uAX64 Mini.



Currently the following cards exist:



In the rear part of the board is space for pluggable boards for Ports/Interfaces or additional features. So far there are 2 boards (more boards will follow) for the rear part, which can be stacked on top of each other:

- Video/Audio/Serial (internal Pi1541 Zero Floppy pluggable)

- Userport/Tapeport



The following PCB boards will be delivered (only the unpopulated PCBs, without components):

- uAX64 MAX

- Video/Audio/Serial board

- Userport/Tapeport board



Data:

-> Informations

-> BOM

-> Troubleshooting



Components Ordering help (no claim to completeness, may be out of date):

-> Reichelt CSV ALL

-> Reichelt CSV ATX Board

-> Reichelt CSV Video Audio Serial

-> Reichelt CSV Userport Tapeport



-> Components from other sources



Files:

-> Soft Switch Firmware

-> 3D Print Slot Bracket (STL, GCODE)

-> Multiple SIDs Test Tool

-> S-Video Color Test Tool

-> S-Video Color Test 2 Tool
