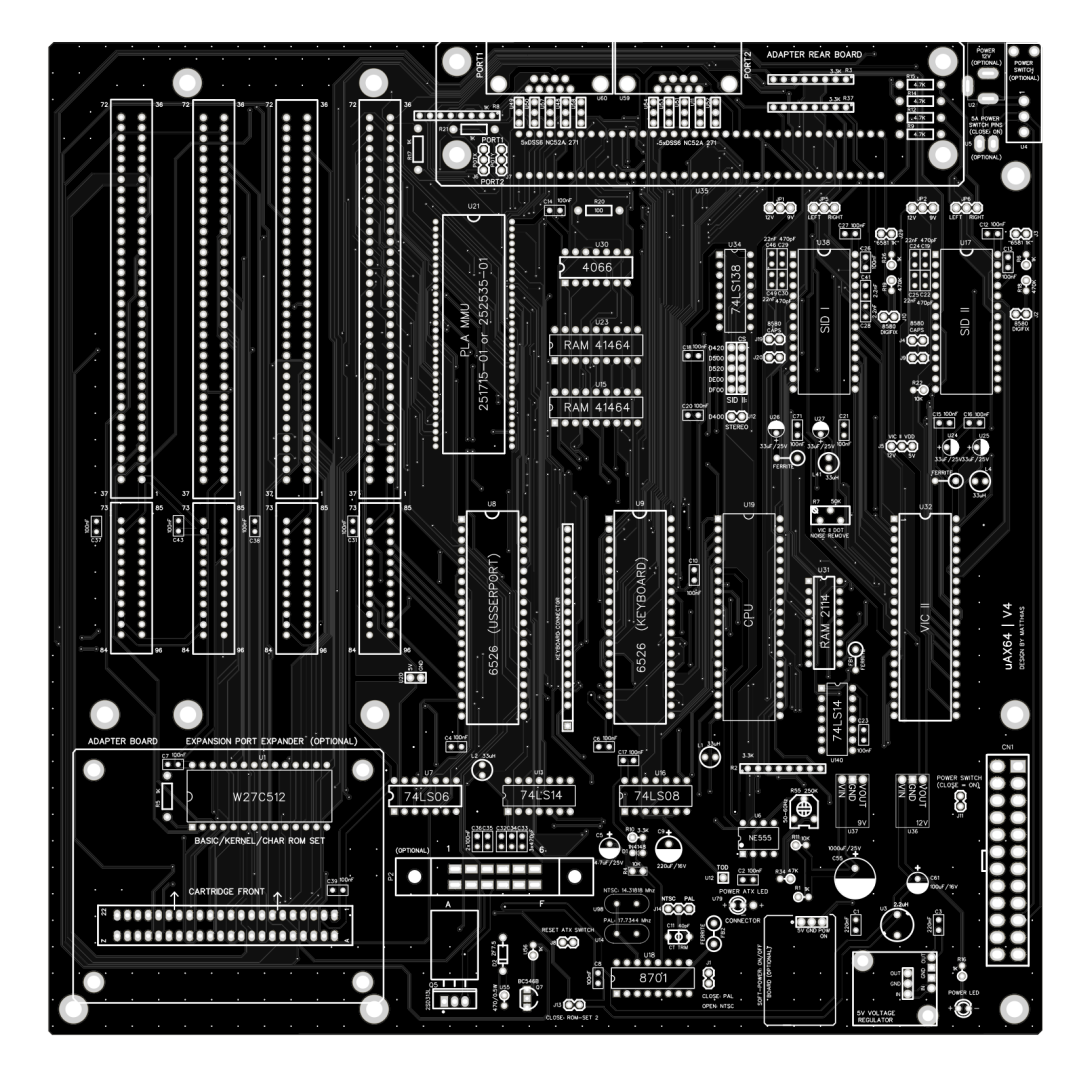

The uAX64 board is 245mm x 245mm and fits into an ATX Micro case. The special thing are the 4 card slots, which are an elegant way to upgrade the C/64 fast and easy, as well as to create new cards for it yourself. Furthermore the additional cards of the uAX64 Mini fit.





In the rear part of the board is space for pluggable boards for Ports/Interfaces or additional features. So far there are 2 boards (more boards will follow) for the rear part, which can be stacked on top of each other:

- Video/Audio/Serial (internal Pi1541 Zero Floppy pluggable)

- Userport/Tapeport



The following PCB boards will be delivered (only the unpopulated PCBs, without components):

- uAX64

- Video/Audio/Serial board

- Userport/Tapeport board



Data:

-> Informations

-> BOM

-> Troubleshooting



Components Ordering help (no claim to completeness, may be out of date):

-> Reichelt CSV ALL

-> Reichelt CSV ATX Board

-> Reichelt CSV Video Audio Serial

-> Reichelt CSV Userport Tapeport



-> Components from other sources



Files:

-> Soft Switch Firmware

-> 3D Print Slot Bracket (STL, GCODE)

-> Multiple SIDs Test Tool

-> S-Video Color Test Tool

-> S-Video Color Test 2 Tool
