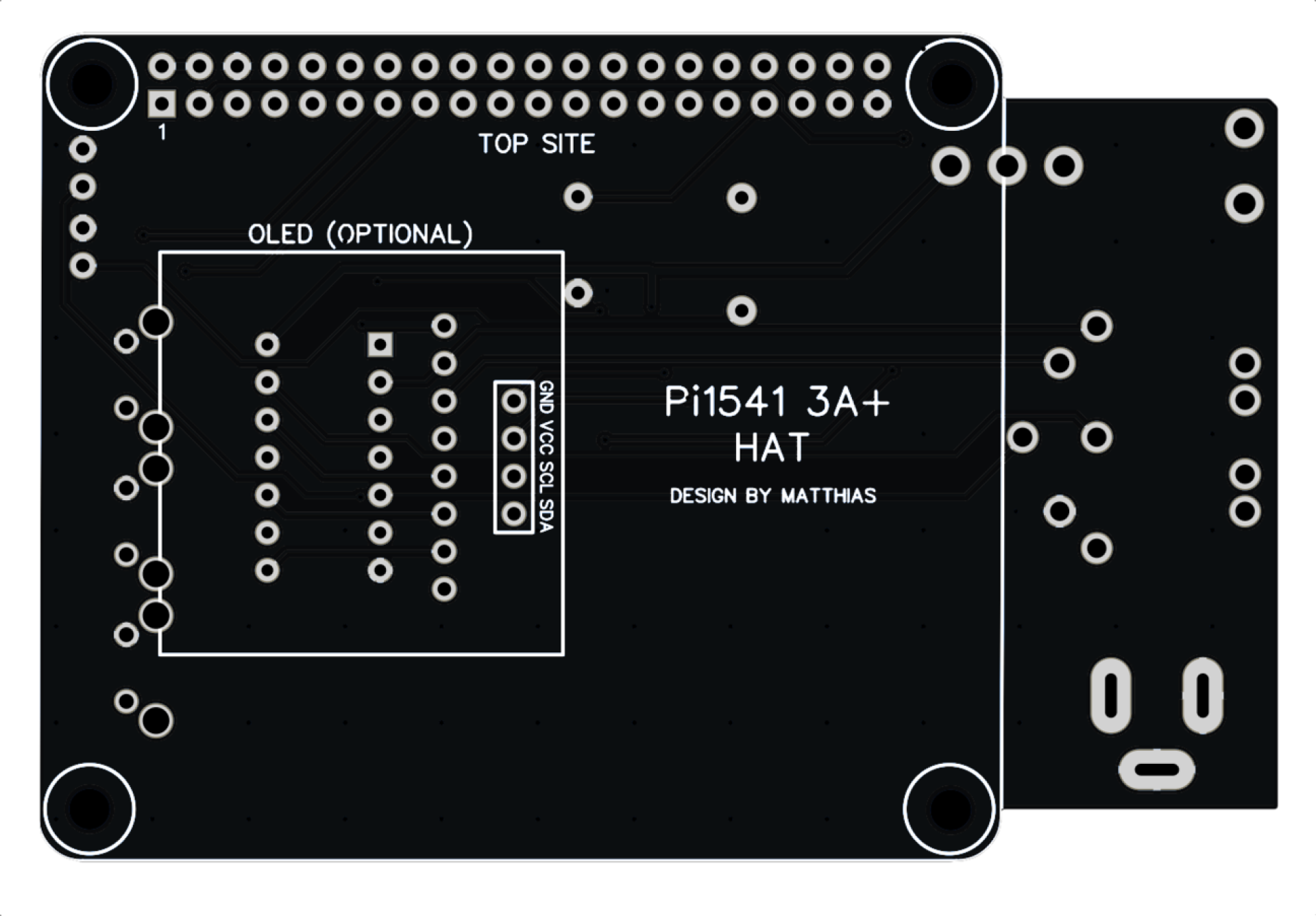

With this board you can build a small Mini Pi1541 drive, matching the selected case. If a CSG 216A CIA 6526 is used in the C64, the Pi1541 should work perfectly. The board does not use the usual additional level shifter board, but uses the 7406 IC, which saves extra components and avoids additional problems.

On the right side are the places for the on/off switch, serial socket and the 5V Power In socket.
