The dream of a C64 in handheld form comes true! This has about the size of a Gameboy and is the world s first handheld in this size that uses the original C64 chips.
Please order additionally: "uHeld64 Cover" (in different colors) for an Anlog Stick or DPAD (see below)
New in version 5: Many small and big improvements
Features:
- IPS LCD Display
- Complete C64 keyboard in miniature form
- Analog Joystick or DPAD and 2 buttons ("Fire" and "Up")
- Slot for optional internal Pi1541 Zero 1541 drive
- S-Video Port (optional)
- 12V DC Power Socket
- Internal Lautspeaker
- Headphones Connector
- External joystick connections (2 x 7 pole plug connectors)
- A module can be inserted from above
- Dimensions approx. 107x159x40mm
Current consumption at 12V: approx. 350mA
A battery charger and discharge protection must be selected and installed by the user.
New v3 Features:
- VIC Dot Noise Fix (Potentiometer)
- Better Audio 9V/5V Support (SID 8580/ARMSID)
- Better space allocation of the components
- Additional board labeling
- 2-pin pin solder strip for external reset button
- 5-pin pin solder strip for external 1541
- 6-pin pin solder strip for external TAPE
- Ready for uSID64 stereo (A5-A9 pins for 2nD SID adapter board)
- Teardrops on Pins

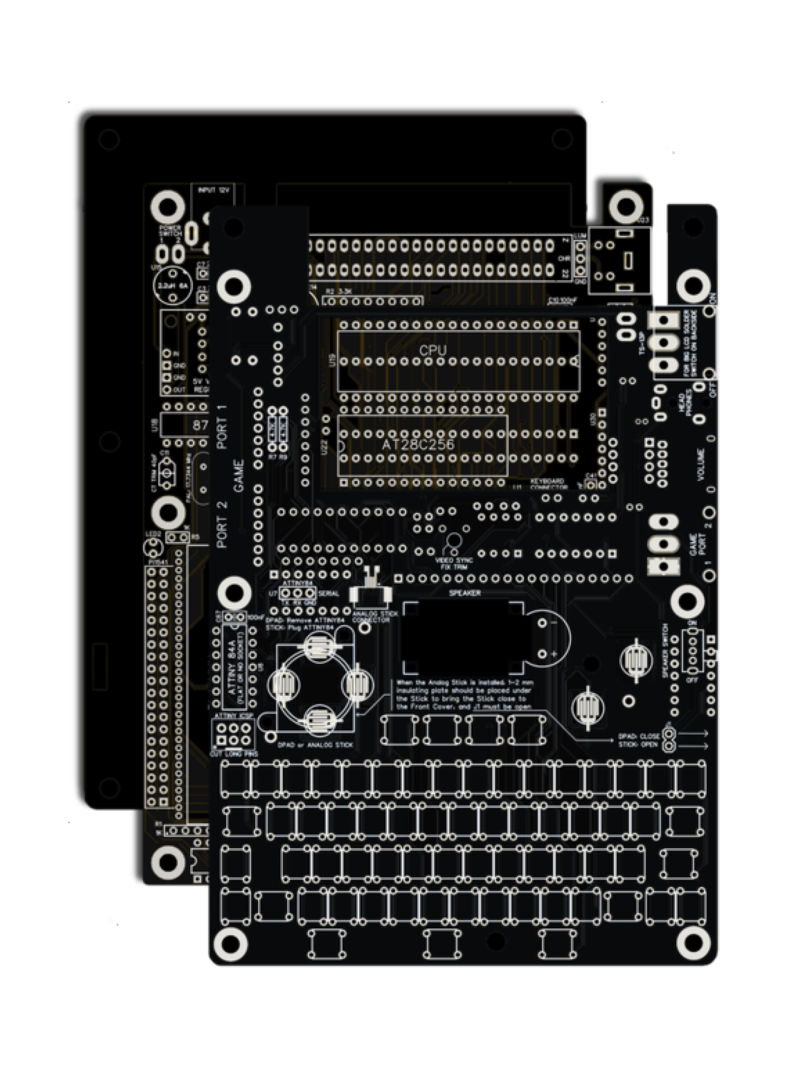

The following PCB boards are supplied (only the unpopulated PCBs, without components):
- Mainboard
- Keyboard
- Rear
- MA8505
Data:
-> Informations
-> BOM
-> Troubleshooting
Components Ordering help (no claim to completeness, may be out of date):
-> Reichelt CSV All
-> Reichelt CSV Mainboard
-> Reichelt CSV Keyboard
-> Components from other sources
Files:
-> ATTiny84A Firmwares
-> S-Video Color Test Tool
-> S-Video Color Test 2 Tool
-> Dot Noise Calibration Tool
Pre-order (delivery within 3 weeks)
