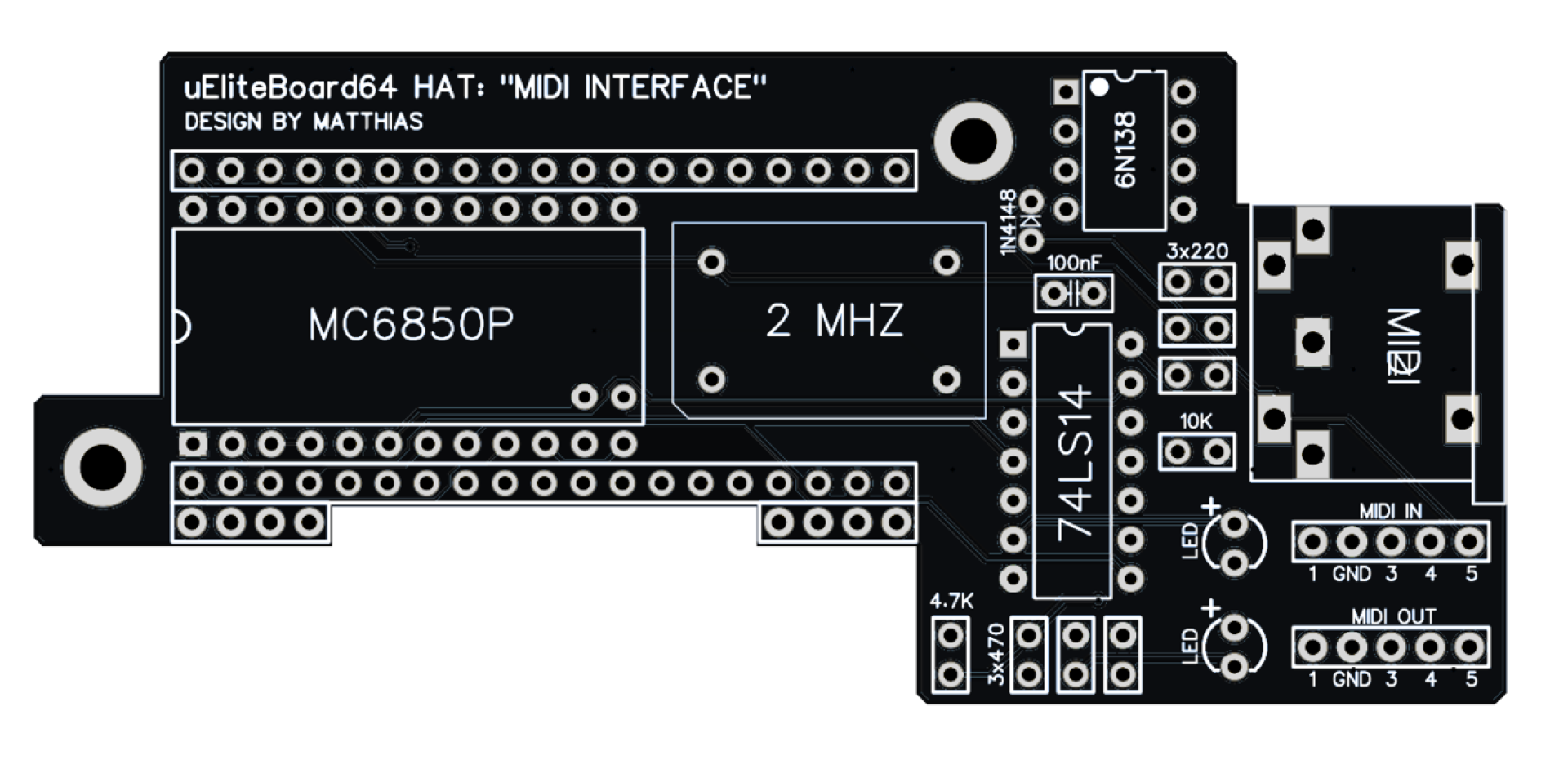

The Midi HAT (DATEL compatible) allows a MIDI keyboard to be connected via the Midi IN input. Additionally, MIDI OUT and MIDI IN are available via 2 pin rows.
Files:
-> Midi Monitor
Data:
-> BOM
Components Ordering help (no claim to completeness, may be out of date):
-> Reichelt CSV
Manufacturer and Safety Information
Manufacturer InformationDipl. Inf.(FH) Matthias Lorenz
c/o Online-Impressum.de
Europaring 90
53757 Sankt Augustin
www.uni64.com
E-Mail: webshop@uni64.com
WEEE-Number: DE94821459
Responsible Person for the EU
See manufacturer information
Product type: Unpopulated printed circuit board (PCB) for further processing.
Product IdentificationProduct: Midi HAT for uEliteBoard64
Art.-No.: 23
This product must not be disposed of with household waste. Please hand it in at a municipal collection point.
Safety Instructions:- This product is not suitable for children.
- PCBs may have sharp edges or corners due to manufacturing. Handle with care.
- Designed exclusively for use in low voltage electronic circuits (max. 12V DC). Further processing (assembly/soldering) must only be carried out by qualified personnel.
In Stock
